Brand:
Bruks
Model:
BK-DH 400x1000L - 8 WT
Type:
wood chipper
Year of manufacture:
2009
Location:
Ukraine
Beregove7789 km to "United States/Columbus"
Beregove7789 km to "United States/Columbus"
Seller stock ID:
BRUKS Kloeckner Wood Chipping Li
Placed on:
more than 1 month
Description
Maximum diameter of the branches:
32,994 mm
PTO rotation speed:
540/540E rpm
Condition
Condition:
used
Bruks wood chippers
Search results:
8 ads

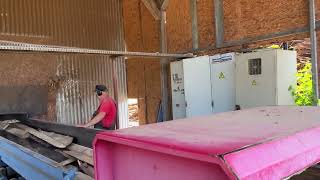

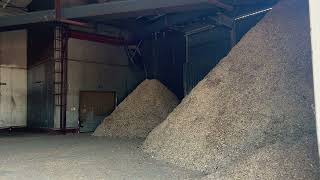

Industrial line for processing wood into chips. Includes conveyors, a metal detector, a drum chipper, a control system, power supply, and auxiliary components. Manufactured by: BRUKS Kloeckner (Germany).
The line was commissioned in 2010 and has not been operated at full capacity. The plant did not run year-round or 24 hours a day due to insufficient raw material supply.
Line Composition:
Belt Conveyor BK-CF 1000 (with spare belt)
Metal Detector BK-MS T
Deflector Wall (single-sided, 7 m)
Drum Chipper BK-DH 400x1000L - 8 WT
Motor Unit 250 kW (incl. pulleys, belts, tensioning device)
Scraper Conveyor BK-CS 1000 L
Electrical Cabinet and Control System
Technical Specifications of the Equipment:
1. Belt Conveyor BK-CF 1000
Center Distance: 15,500 mm
Cushioned Loading Zone: 7,000 mm
Metal-Free Zone: 2,500 mm
Width: 1,000 mm
Trough Height: 400 mm
Steel Thickness: 10 mm
Drive: Via chipper
2. Metal Detector BK-MS T
Tunnel design, continuous automatic monitoring with adjustable settings.
Includes electrical control, siren (110 dB), signal lamp, integrated oscillator, amplifier, shutdown relay, external acknowledgment button.
Paint: RAL 3027 (Crimson Red).
3. Deflector Wall
Length: 7 m.
Single-sided.
Designed for loading material onto the belt conveyor using a dosing conveyor (supplied by the Customer).
4. Drum Chipper BK-DH 400x1000L - 8 WT
Chipping Height: 400 mm
Chipping Width: 1000 mm
Chip Length: 35–40 mm
Number of Knives: 2
Feed Speed: 28 m/min
Main Motor Power: 250 kW
Capacity: 30 m³/h (solid chips)
Rotor Diameter: 1300 mm
Rotor Speed: 420 rpm
Feed Motors: 2×7.5 kW
Operating Voltage: 400 V / 50 Hz
Control Voltage: 230 V
Drive Pulley: For 1500 rpm motor
Hydraulics: Shaft lift, cover, pressure adjustment — with hand pump, cylinders, and accumulator
5. Motor Unit 250 kW
Consists of adjustable rails, V-belt pulley, V-belt set, protective cover.
Main Motor: 250 kW, 400 V, 50 Hz, 1500 rpm, IP54.
6. Scraper Conveyor BK-CS 1000 L
Overall Length: 18,450 mm
Width: 1000 mm
Height: 585 mm
Discharge Speed: 25 m/min
Belt Limit Load: 14.7 t
Drive Power: 7.5 kW
Construction: Closed galvanized, with stiffeners, low noise level, flap gate at the drive station
7. Electrical Cabinet and Control System
Switching: 250 kW motor start — star/delta; 2×7.5 kW feed motors — direct start with indicator lights; 4 kW pump — direct start, with oil level monitoring; rotor cover protection — category 3; local switches and control sensors for the scraper conveyor.
